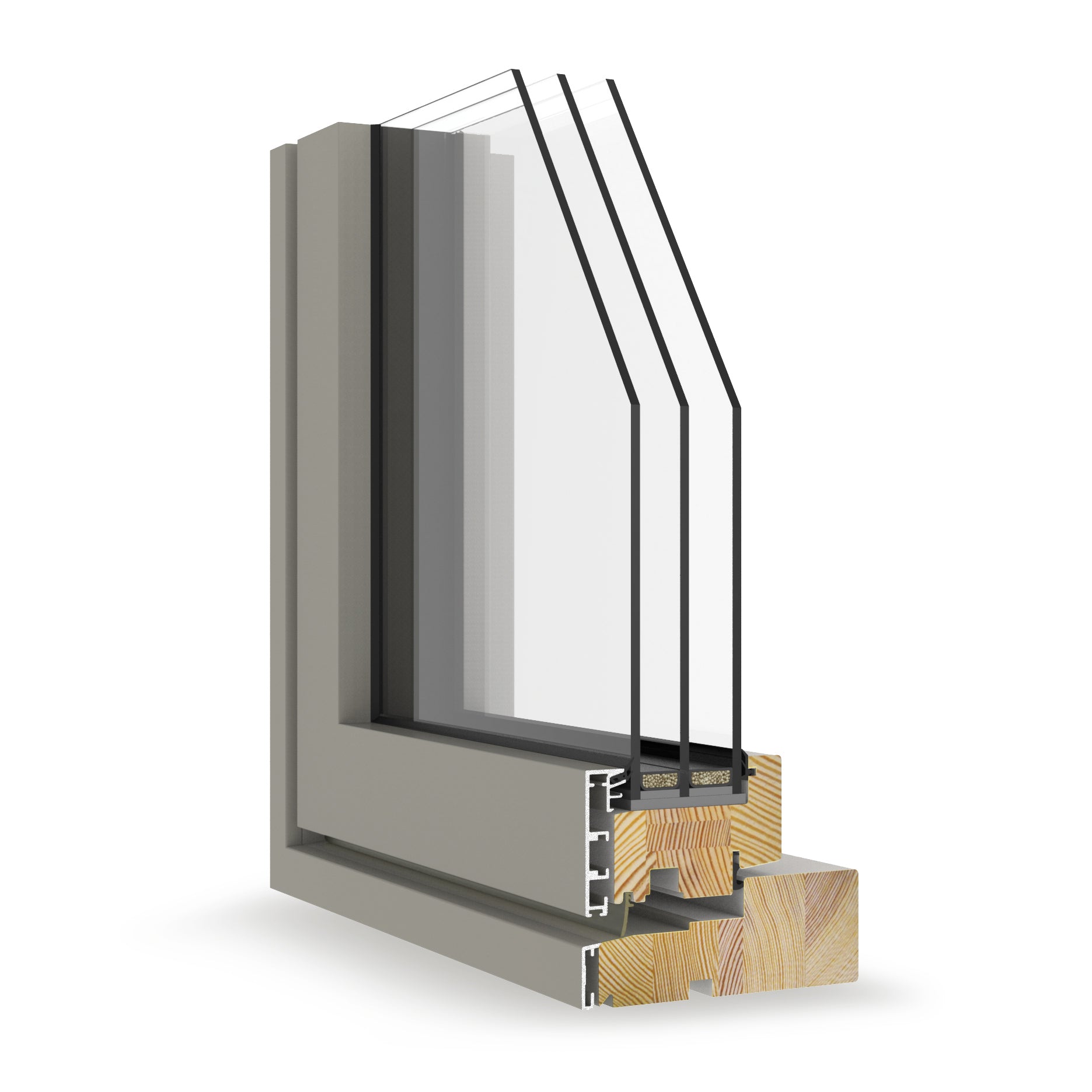

• Cross-sectional view of a triple-glazed window frame with materials and construction details on a white background
  • Sectional view of a triple-glazed window frame with glass and wooden elements on a white background
  • triple-glazed window frame with glass section on a white background
  • triple-glazed window frame with glass section on a white background
1 4

Outward Opening Alu-Clad Window (P31A)

Outward Opening Alu-Clad Window (P31A)

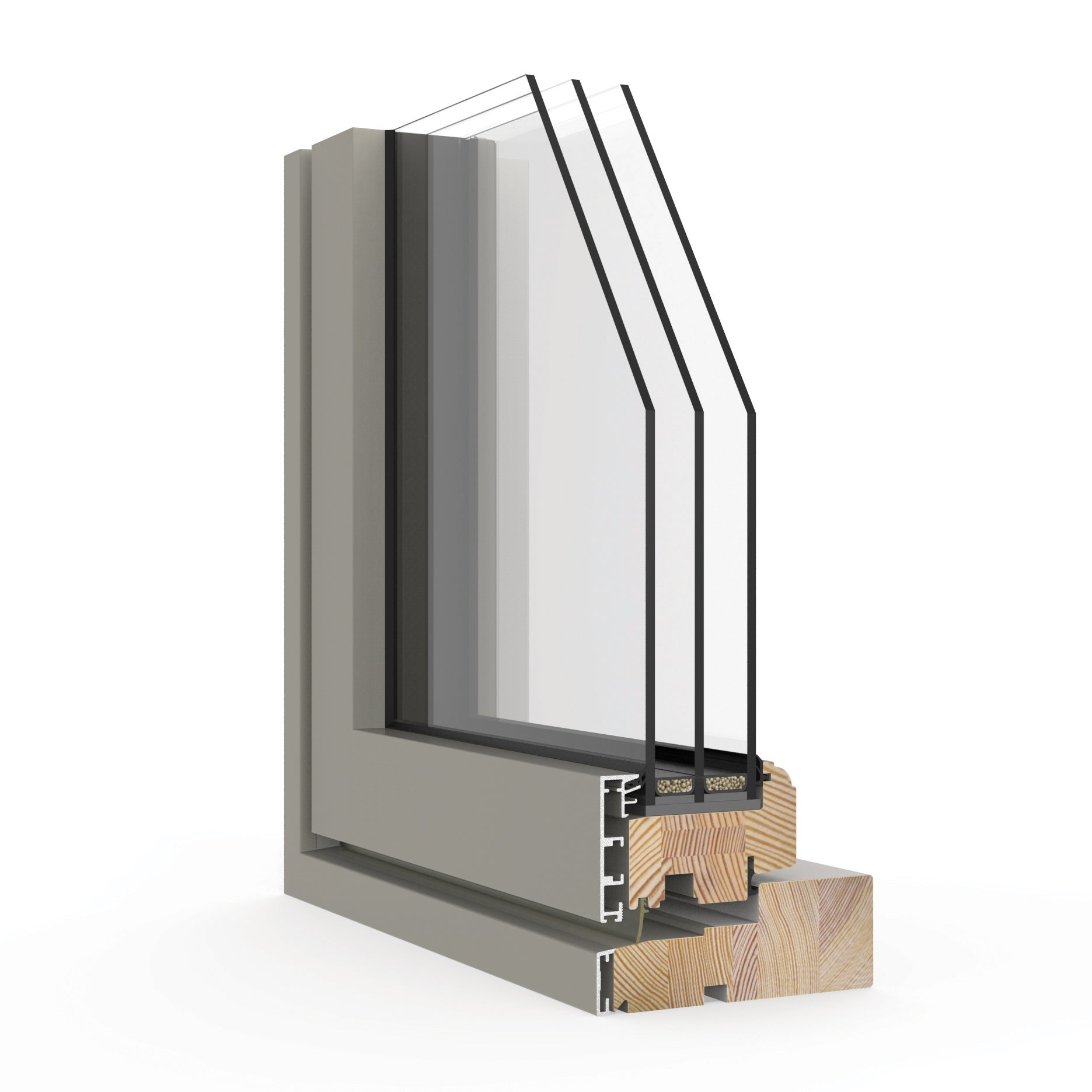

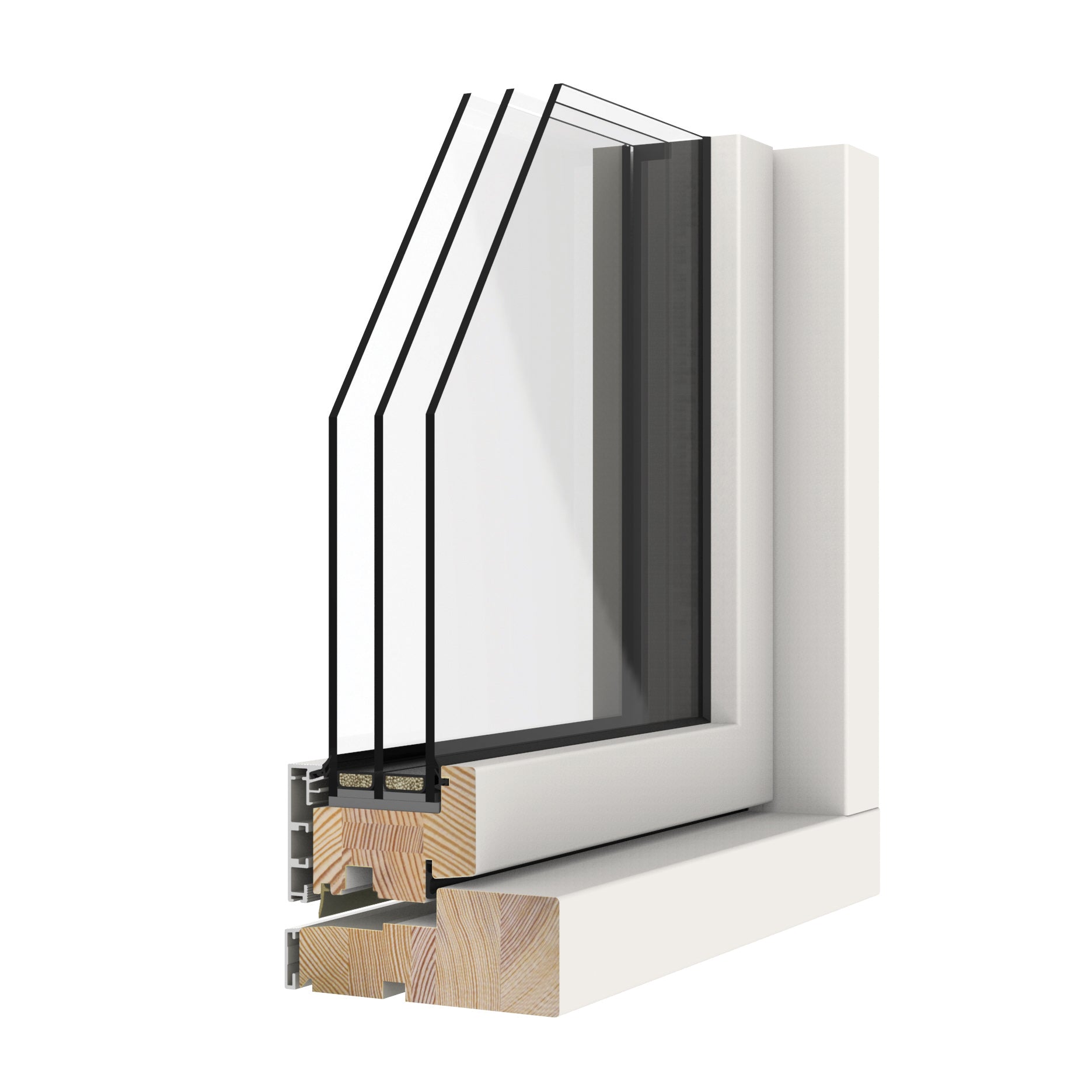

Frame
This triple-glazed outward opening window with aluminium cladding delivers excellent performance and is suitable for extremely energy efficient homes including Passive houses. Build It named our Outward Opening Alu-Clad Window (P31A) as their Window of the Year 2023.

The external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The triple-glazed unit is a 48 mm unit with argon gas filling, warm edge spacer bar  and two panes of Low-E glass. Whole window U-Values are around 0.75 W/m²K.

The frame is available in depths from 94 mm to 122 mm. On the deeper section frame a decorative moulding finish is available.

  • Thermal Performance: U-Value 0.75
  • Sound Performance: 33db
  • Security Performance: PAS 24 Certified

Technical Information

Opening types Fixed pane, Top hung, Side hung, Fully reversible
Frame depth 94/122 mm
Whole window U-value 0.75 W/m²K
Glass U-value 0.53 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1500 (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured

Data Sheet

p31a.pdf

Drawing

p31a.dwg

View full details

Which windows are right for you?

Take our short survey to discover the perfect windows for your project.

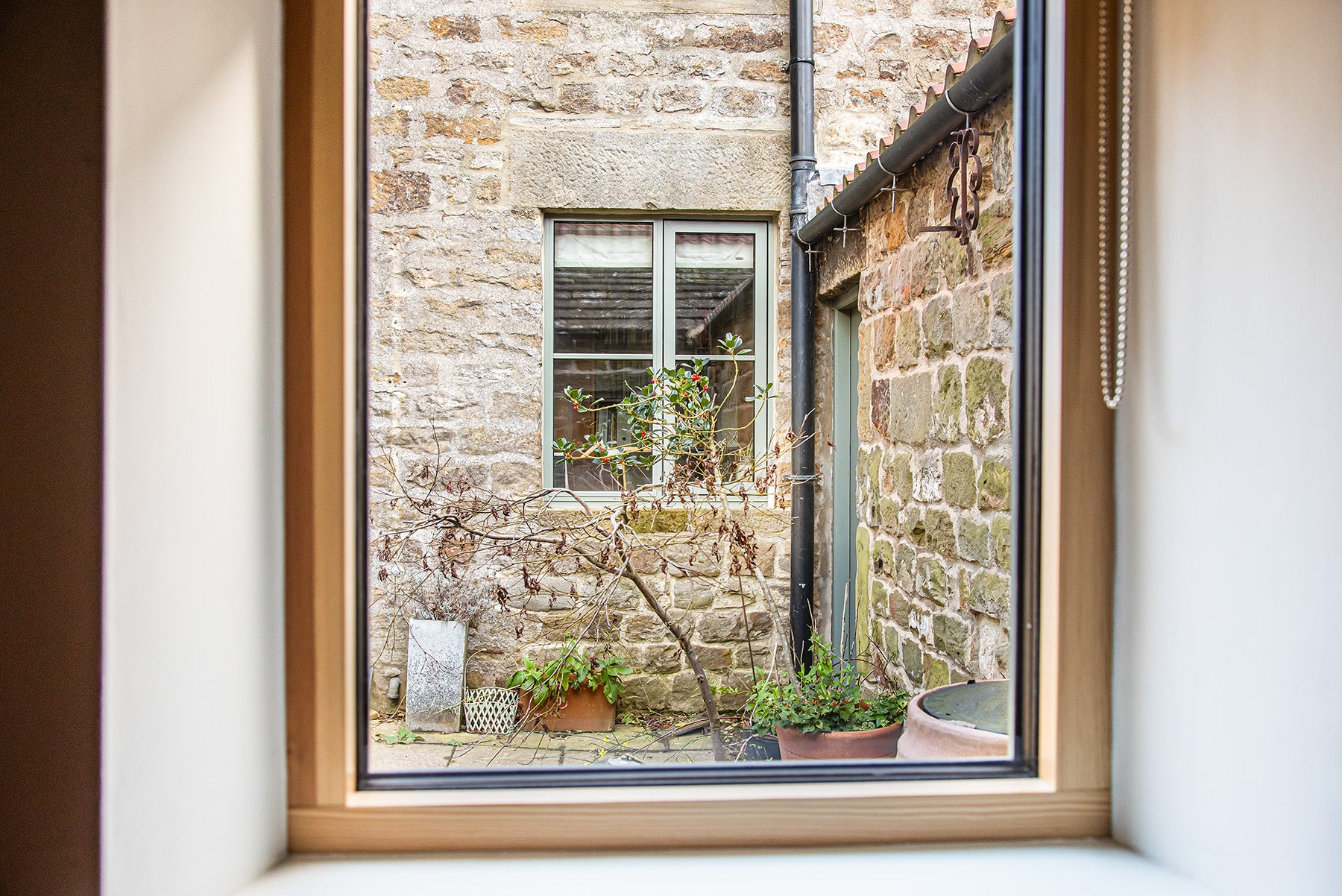

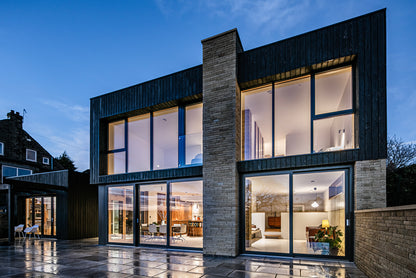

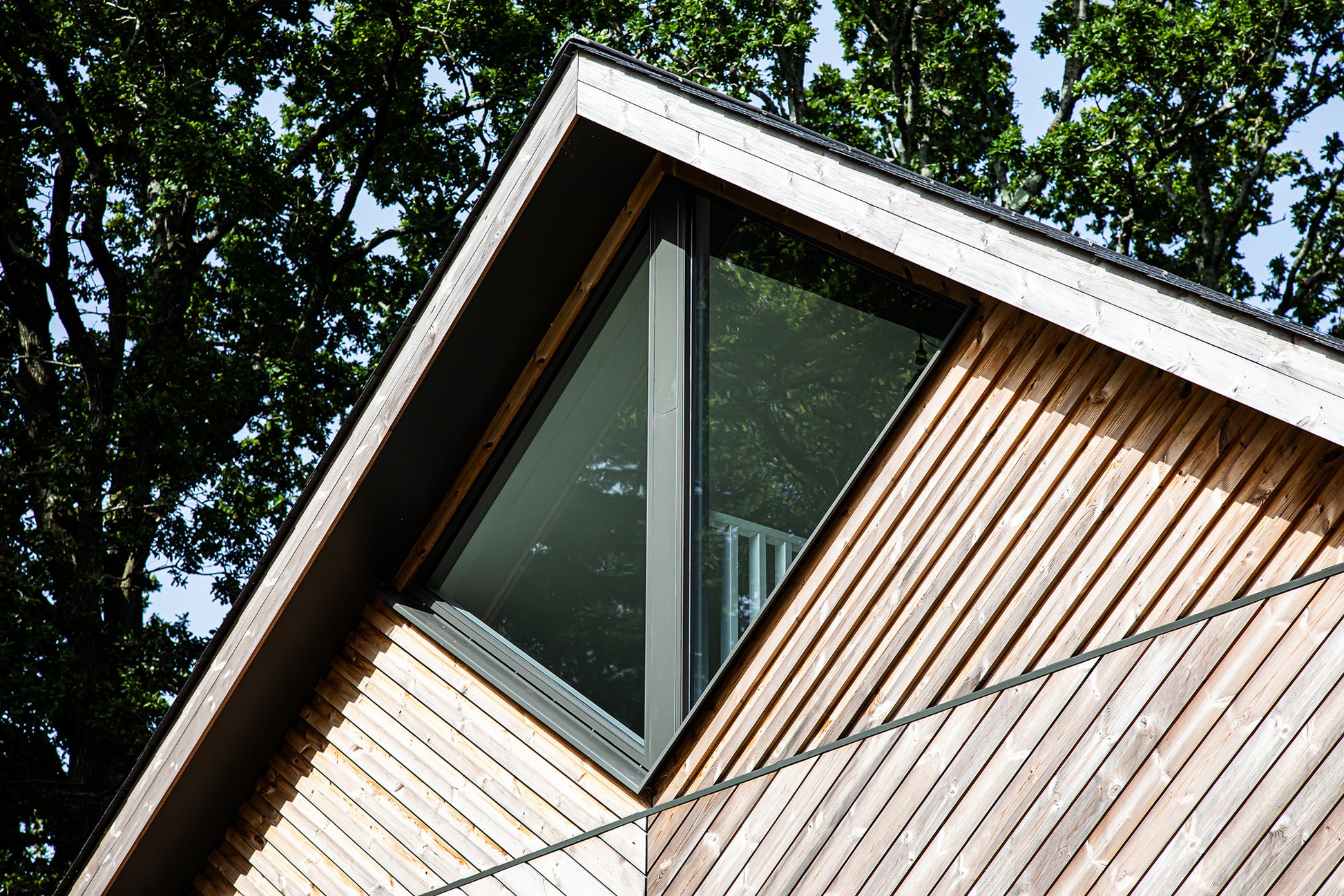

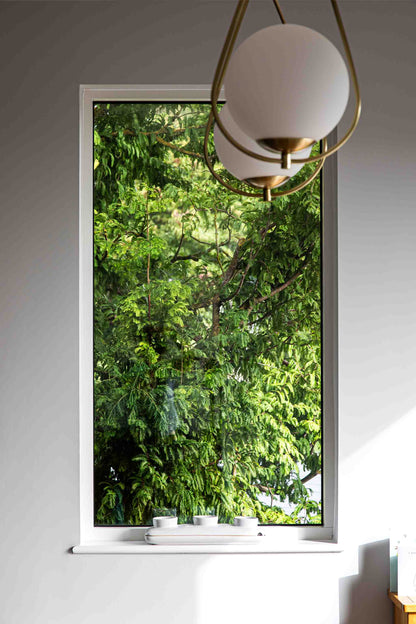

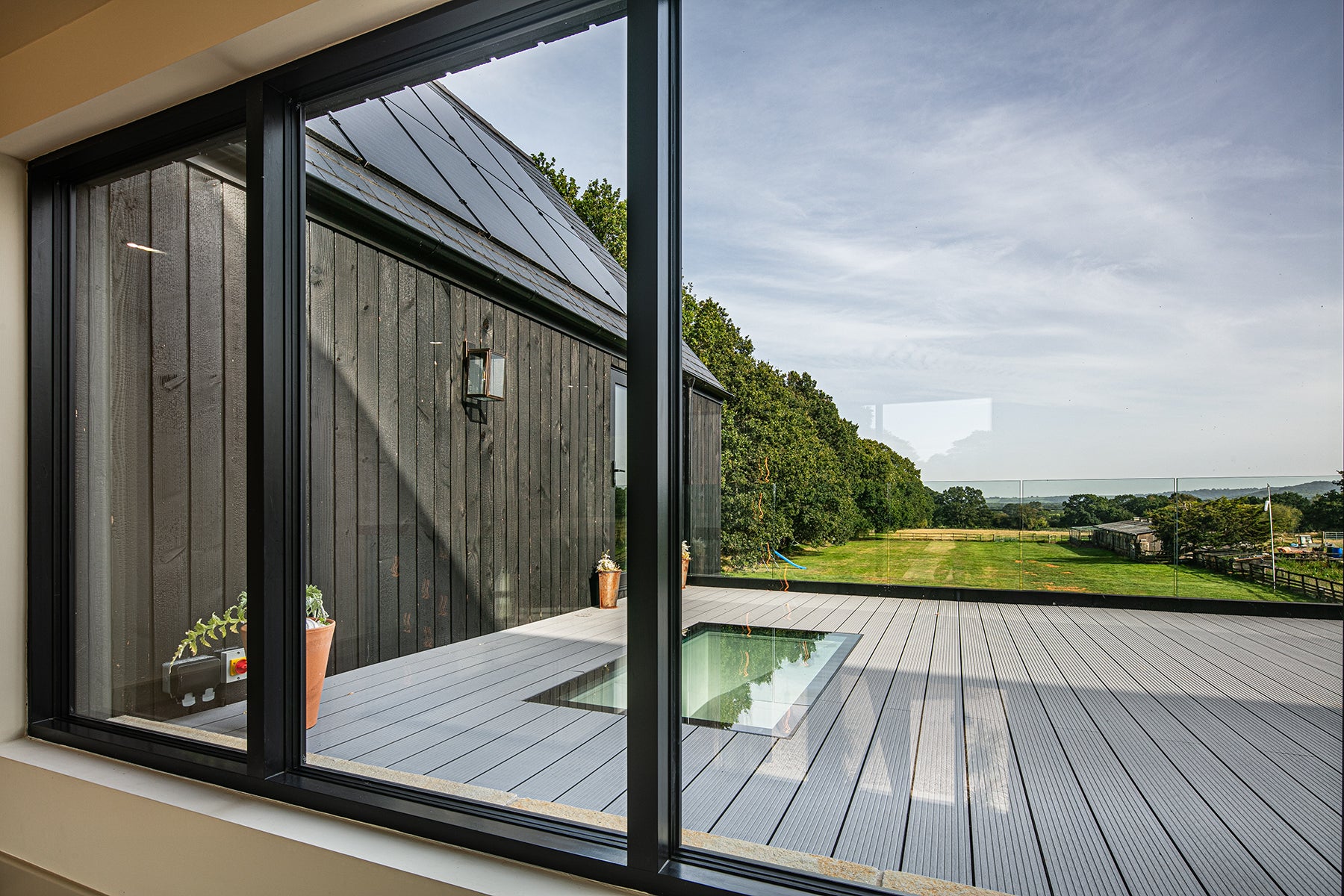

See the P31A in action

At Norrsken, we’re fortunate enough to work on some breath-taking projects.

From barn conversions to innovative new builds, dream homes that take half a decade and an armada of professionals to budget-focused living space renovations and self builds – we’ve seen it all.

Our windows and doors add beauty and value to homes up and down the country. We work with clients on a vast array of styles, designs, colours, and purposes. That is something we’re quite proud of.

GALLERY

BACK
VIEW ALL PROJECTS

Create Something Distinct

Every Norrsken order is unique. Beyond custom dimensions and precision manufacturing, we provide the design flexibility to perfectly express your vision.

From custom shapes and specialized hardware to powder-coated trims and distinct hardware - find the finishes you need, whatever your project specification.

OPTIONS

Colours & Finishes

Complete design freedom to perfectly match your architectural vision.

Choose from solid colours or natural finishes with dual-colour options available on virtually every product – select one colour externally and another internally using any RAL specification.

Handles & Hardware

Our curated hardware selection combines exceptional functionality with aesthetic flexibility.

While some components are product-specific for optimal performance, we offer extensive customization across styles, colors, and finishes.

Glass Options

Advanced glazing solutions engineered for optimal comfort and performance.

Our comprehensive glass selection provides complete flexibility including double and triple glazing, solar control, and obscure options. Glass delivers the highest insulation performance in any window - with proper specification, you can maximize beneficial solar gain while preventing overheating.

Modern building with triple-glazed window, a balcony overlooking a cloudy sky and water.

Marine Finish

Marine-grade finishing for projects within 1,500 meters of the sea, ensuring exceptional durability in challenging coastal environments.
Close-up of a building exterior with wooden slat wall and triple-glazed window.

Sills & Trims

Bespoke sills and precision trims for unique architectural features. Specialized solutions including steel beam coverings and complex junction details.

Opening Options

Outward opening windows were originally developed for harsh climate conditions in Northern Europe and are the dominant type in the UK, Ireland and Scandinavia.

As these countries experience more challenging weather than many other European countries, the outward opening window works well because strong winds tend to force it to close more tightly, improving its weather resistance. Outward opening windows can be: top hung, side hung or fully reversible. Triangular, circular and semicircular fixed windows are also available.

TOP HUNG

SIDE HUNG

FULLY REVERSIBLE

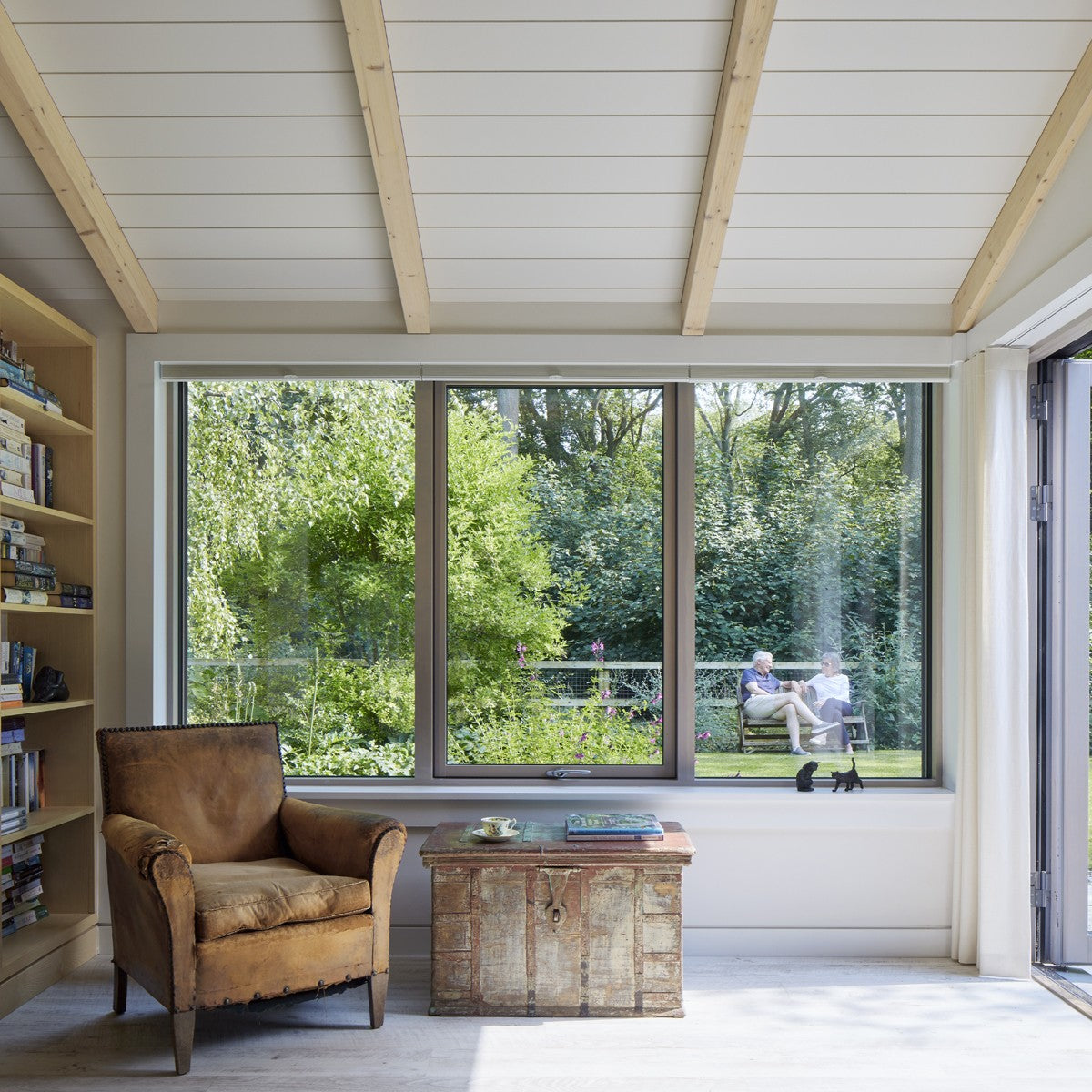

Modern room with large triple-glazed windows offering a view of a field, featuring a cozy corner with a chair and blanket.

TOP HUNG

Perfect for high-level ventilation and privacy, top hung windows open outward from the bottom with built-in friction brakes.

Ideal for bathrooms and kitchens where you want fresh air with privacy, as cool air flows in below while warm air escapes above. The design maintains excellent thermal performance and energy efficiency through advanced sealing systems.

VIEW THE RANGE →

SIDE HUNG

Our versatile side hung windows open outward on side hinges, offering maximum opening area and excellent ventilation without taking up internal space.

The classic choice for most residential applications, providing excellent ventilation control and unobstructed views. Multi-point locking systems ensure security while maintaining the sleek aesthetics that complement both traditional and contemporary homes.

VIEW THE RANGE →

FULLY REVERSIBLE

Clean your windows safely from inside with fully reversible operation, rotating 180 degrees for complete access to both sides of the glazing.

Particularly valuable for upper floors and hard-to-reach locations, these windows rotate completely, eliminating the need for external cleaning access. They feature weatherproof sealing and varied ventilation options as users can control airflow from multiple angles.

VIEW THE RANGE →
