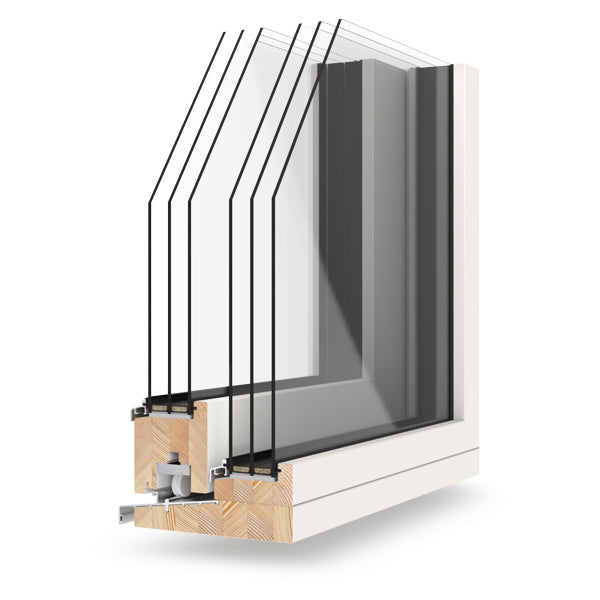

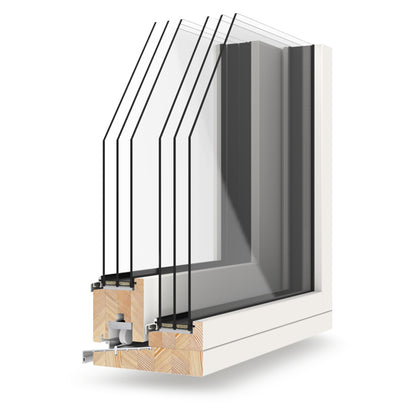

• Sectional view of a triple-glazed window frame with glass panes on a white background

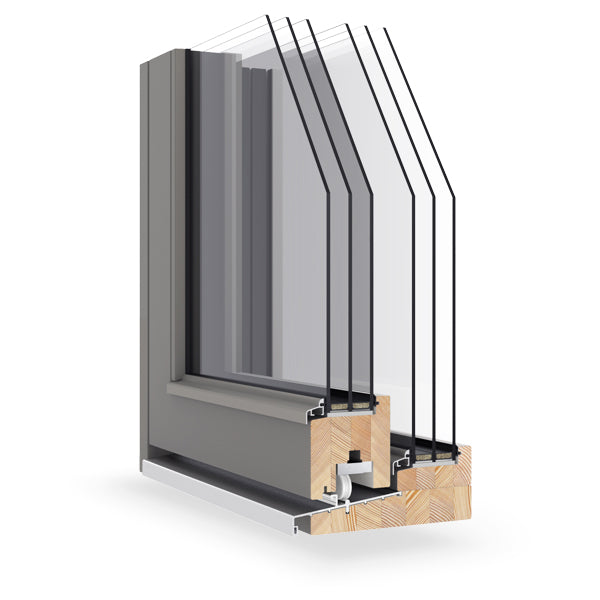

  • Window frame with triple-glazed glass and wooden sill on a white background
1 2

Sliding Timber Door (S319T)

Sliding Timber Door (S319T)

FRAME

A 184mm or 196mm deep triple-glazed inline sliding patio door with optional aluminium cladding externally.

Our Innova S319 inline sliding door is designed as a two or four-panel door with a larger fixed panel relative to the sliding leaf. Depending on the design, this door can be produced at a maximum width of approximately 4000mm for a two-pane and 5900mm for a four-pane door.

The external sliding panel is pulled in towards the frame when the door is closed and locked, making the door very weather-resistant.

Typical thermal performance is approximately 0.72 W/m²K (whole door value). This door is suitable for use in Passive Houses.
  • Thermal Performance: U-Value 0.72
  • Sound Performance: 33db
  • Security Performance: PAS 24 Certified

Technical Information

Opening types Sliding
Frame depth 184 mm
Whole window U-value 0.72 W/m²K
Glass U-value 0.52 W/m²K
Glass package 52 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1350 (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured

Data Sheet

S319T.pdf

Drawing

S319T.dwg
