Inward Opening Alu-Clad Panel Door (S105A)

Inward Opening Alu-Clad Panel Door (S105A)

FRAME

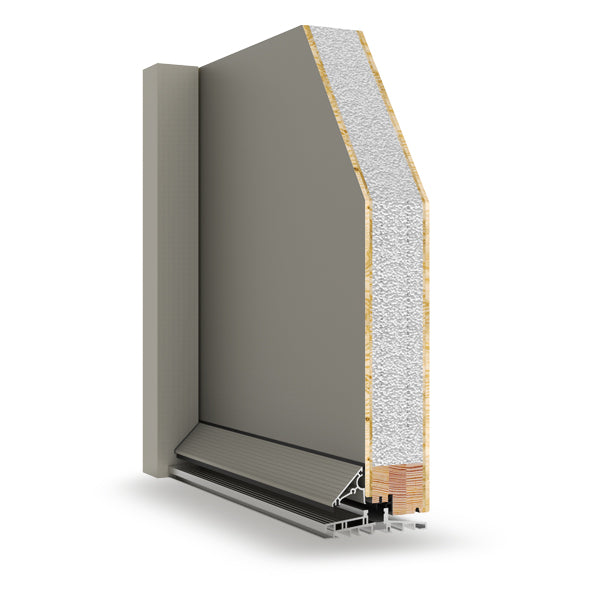

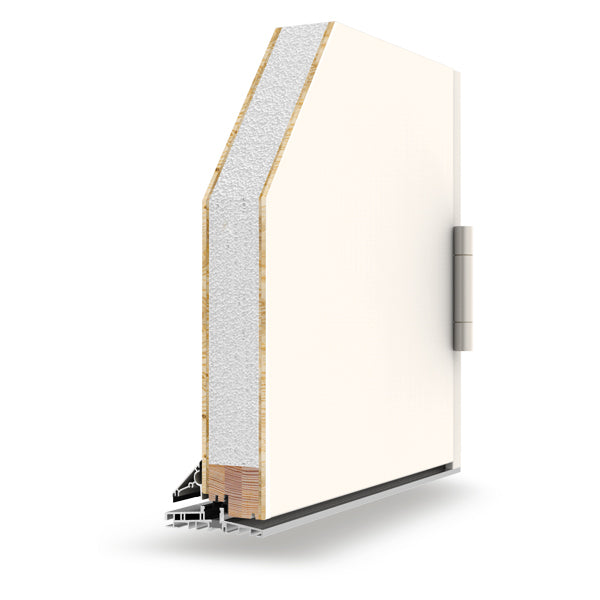

An inward opening insulated panel door. The door is a timber composite panel. The frame is engineered timber with aluminium cladding.

Both the door and frame are available in our full range of RAL colours. The aluminium cladding on the frame makes it possible to have a different colour on the frame to the one used on the door. The S105 door features the same profile as the S103 door in an inward-opening model.

The S105T door has a frame depth of 131.4mm, and can be specified to suit your project requirements.

Typical U-values are approximately 1.2 W/m²K.



  • Thermal Performance: U-Value 1.2
  • Sound Performance: db
  • Security Performance: PAS 24 Certified

Technical Information

Opening types Inward Opening
Frame depth 131.4 mm
Whole window U-value 1.2 W/m²K
Glass U-value 0.56 W/m²K
Glass package 45 mm triple glazed, two panes Low-E, argon filled
Sound insulation 21 db
Air permeability NPD
Watertightness NPD
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured

Data Sheet

S105A.pdf

Drawing

S105A.dwg
