p33a - 300 Series

Inward Opening Alu-Clad

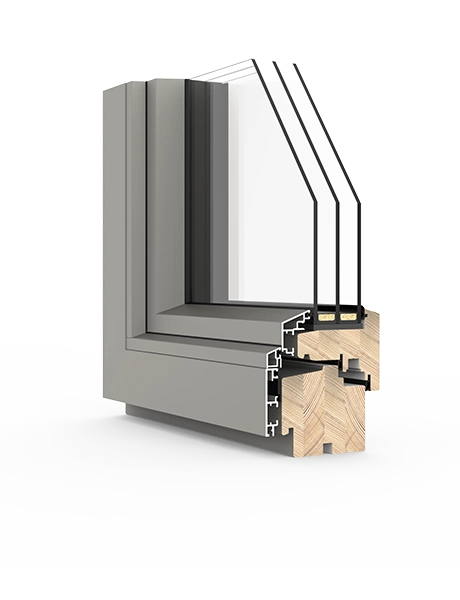

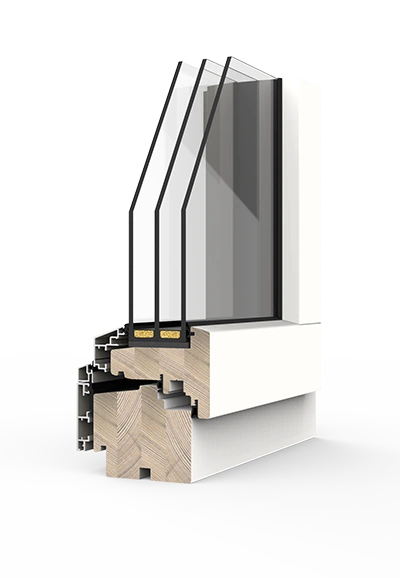

90mm deep inward opening window with external aluminium cladding and triple glazing
next previous

This triple glazed inward opening window with aluminium cladding delivers superb performance and is suitable for highly energy efficient homes including Passive houses.

The 90mm laminated timber frame and deeper glazing unit give improved performance over the P23 window while external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The triple glazed unit is a 520 mm unit with argon gas filling, warm edge spacer bar  and two internal panes of Low-E glass. Whole window U-Values are around 0.77 W/m²K.


  Thermal Performance
U Value (typical) 0.77
  Sound Performance
Decibels (typical) 34 dbdb
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 90 mm mm
Whole window U-value 0.77 W/m²K
Glass U-value 0.52 W/m²K
Glass package 52 mm triple glazed, two panes Low-E, argon filled
Sound insulation 34 db db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1500 (EN 12208:2001)
Wind load Class 5C (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p33a.pdf
Drawing p33a.dwg
  Thermal Performance
U Value (typical) 0.77
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 34 dbdb
  Security Performance
PAS 24
