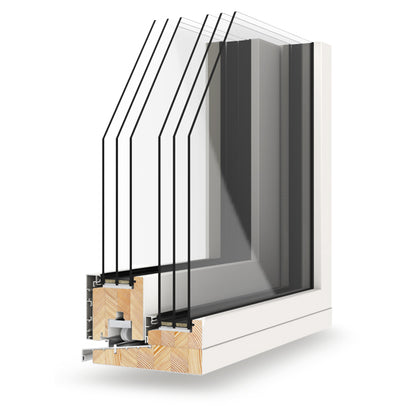

• Cross-sectional view of a triple-glazed window frame with glass panes on a white background

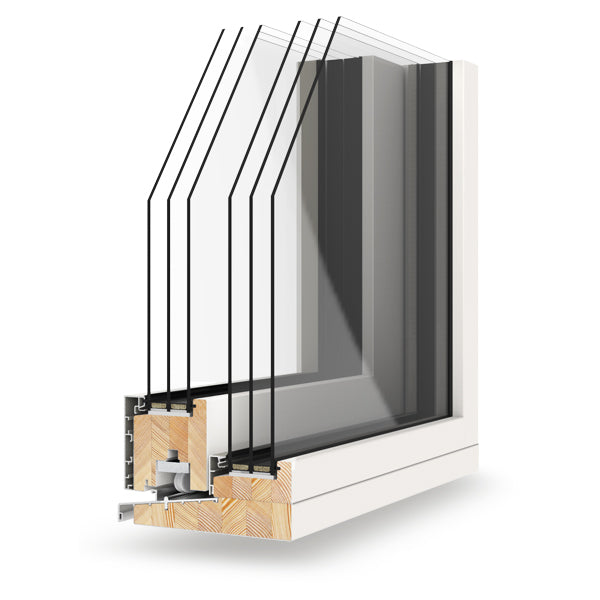

  • Triple-glazed Window frame cross-section showing materials and construction on a white background
1 2

Sliding Alu-Clad Door (S319A)

Sliding Alu-Clad Door (S319A)

FRAME

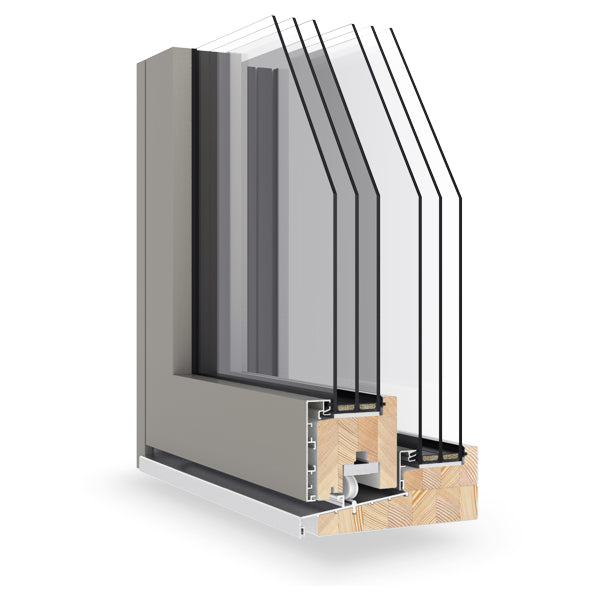

A 184mm or 196mm deep triple-glazed inline sliding patio door with optional aluminium cladding externally.

Our Innova S319 inline sliding door is designed as a two or four-panel door with a larger fixed panel relative to the sliding leaf. Depending on the design, this door can be produced at a maximum width of approximately 4000mm for a two-pane and 5900mm for a four-pane door.

The external sliding panel is pulled in towards the frame when the door is closed and locked, making the door very weather-resistant.

Typical thermal performance is approximately 0.72 W/m²K (whole door value). This door is suitable for use in Passive Houses.
  • Thermal Performance: U-Value 0.72
  • Sound Performance: 33db
  • Security Performance: PAS 24 Certified

Technical Information

Opening types Outward Opening Sliding
Frame depth 196 mm
Whole window U-value 0.72 W/m²K
Glass U-value 0.52 W/m²K
Glass package 52 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1350 (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured

Data Sheet

S319A.pdf

Drawing

S319A.dwg

View full details

What type of doors are you looking for?

Take our short survey to see how we can help you choose the right doors for your project.

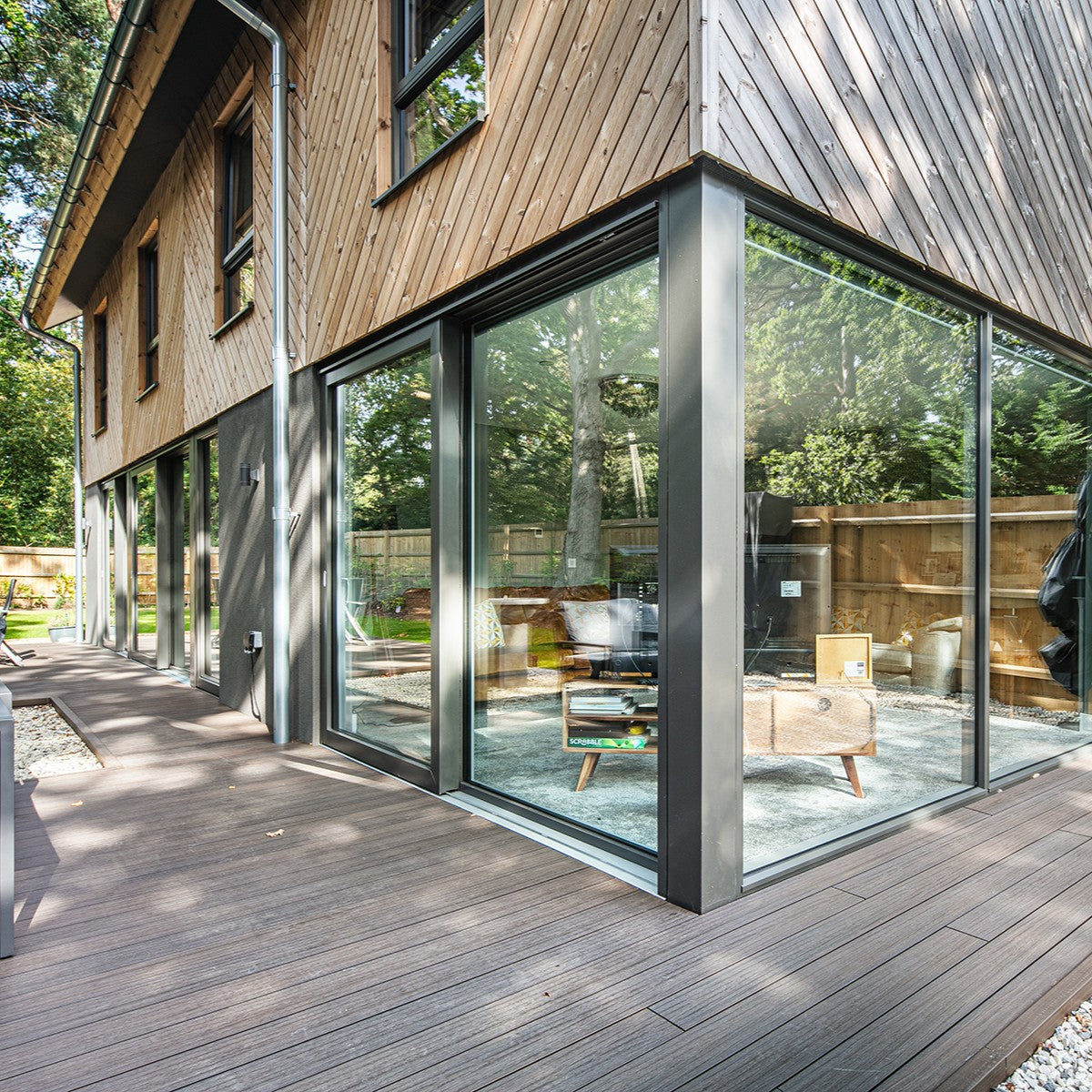

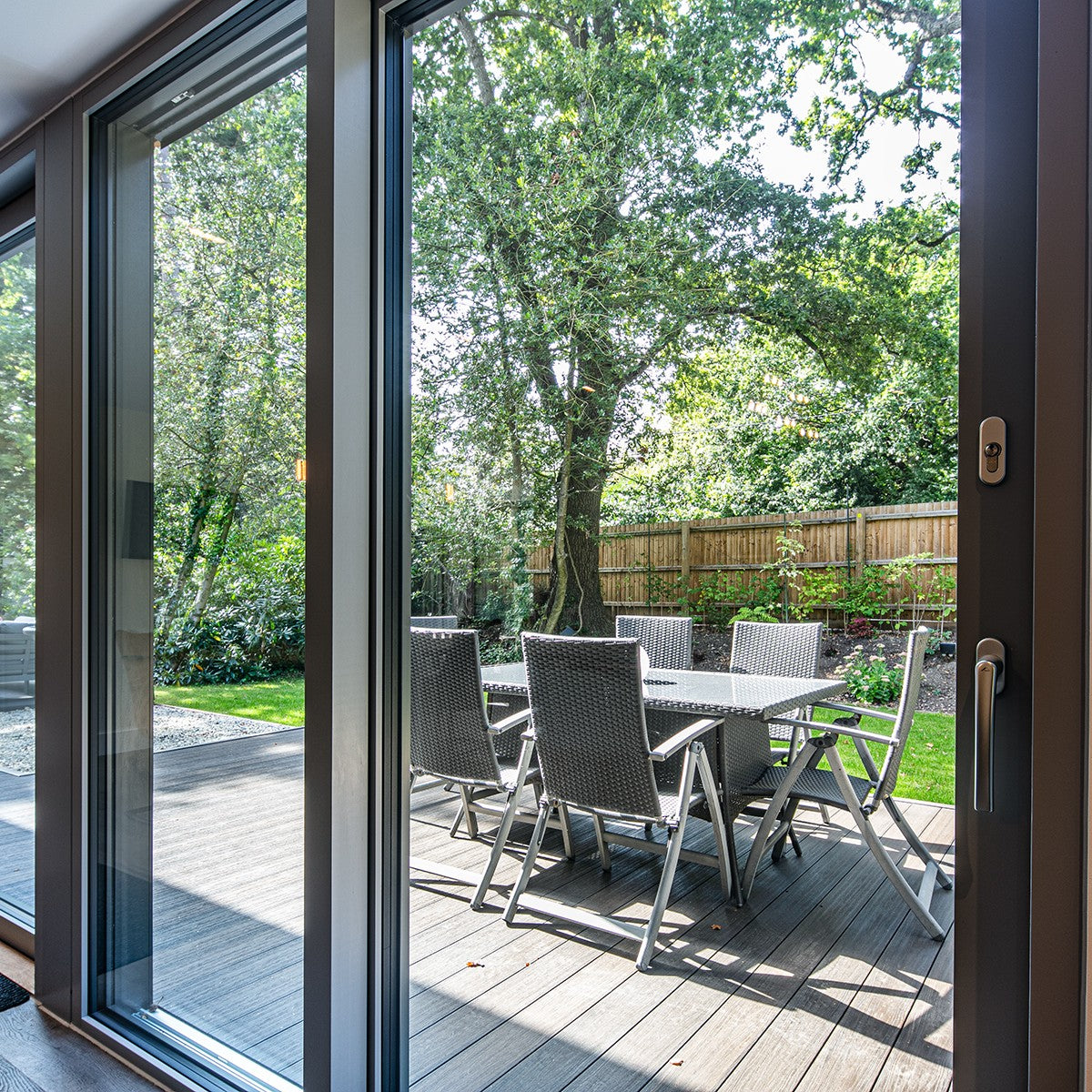

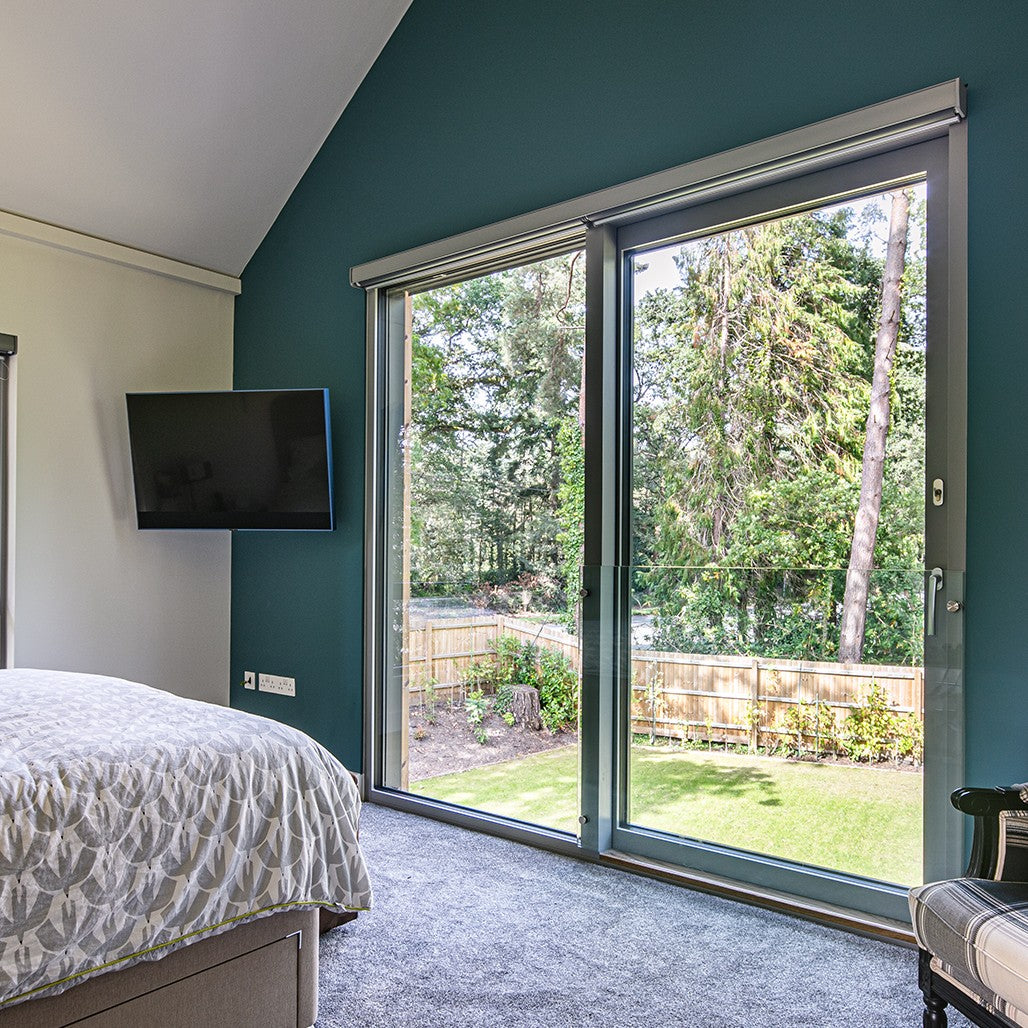

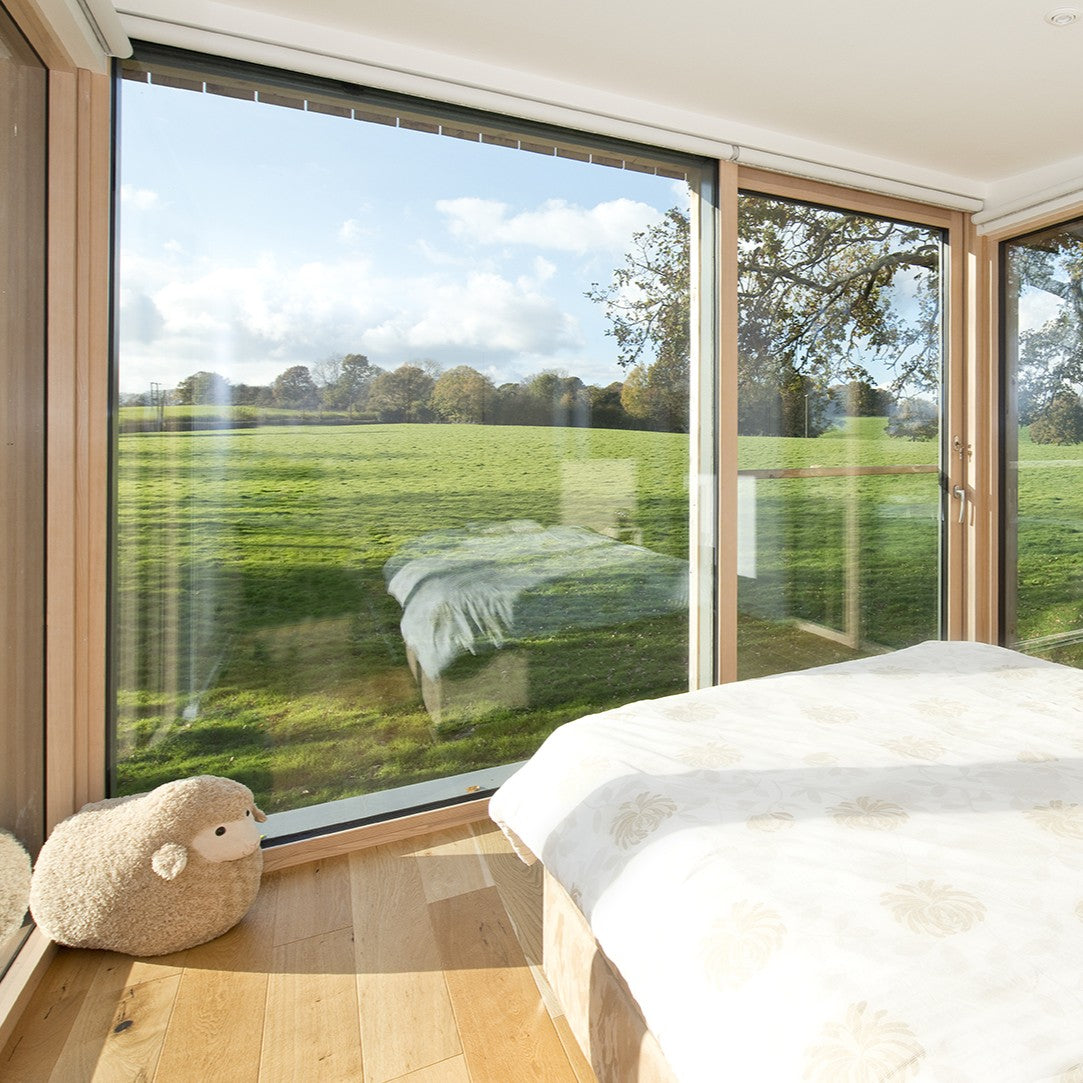

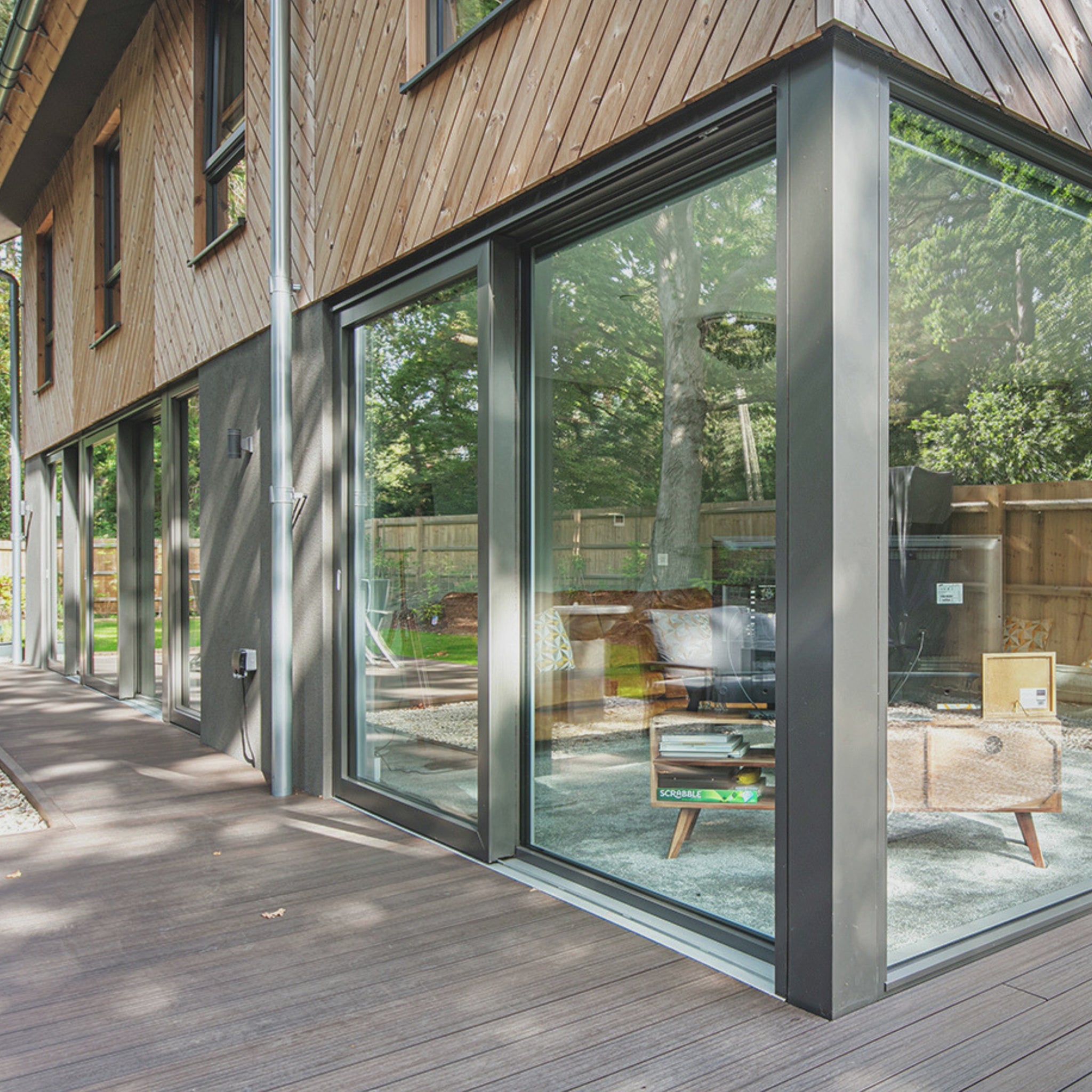

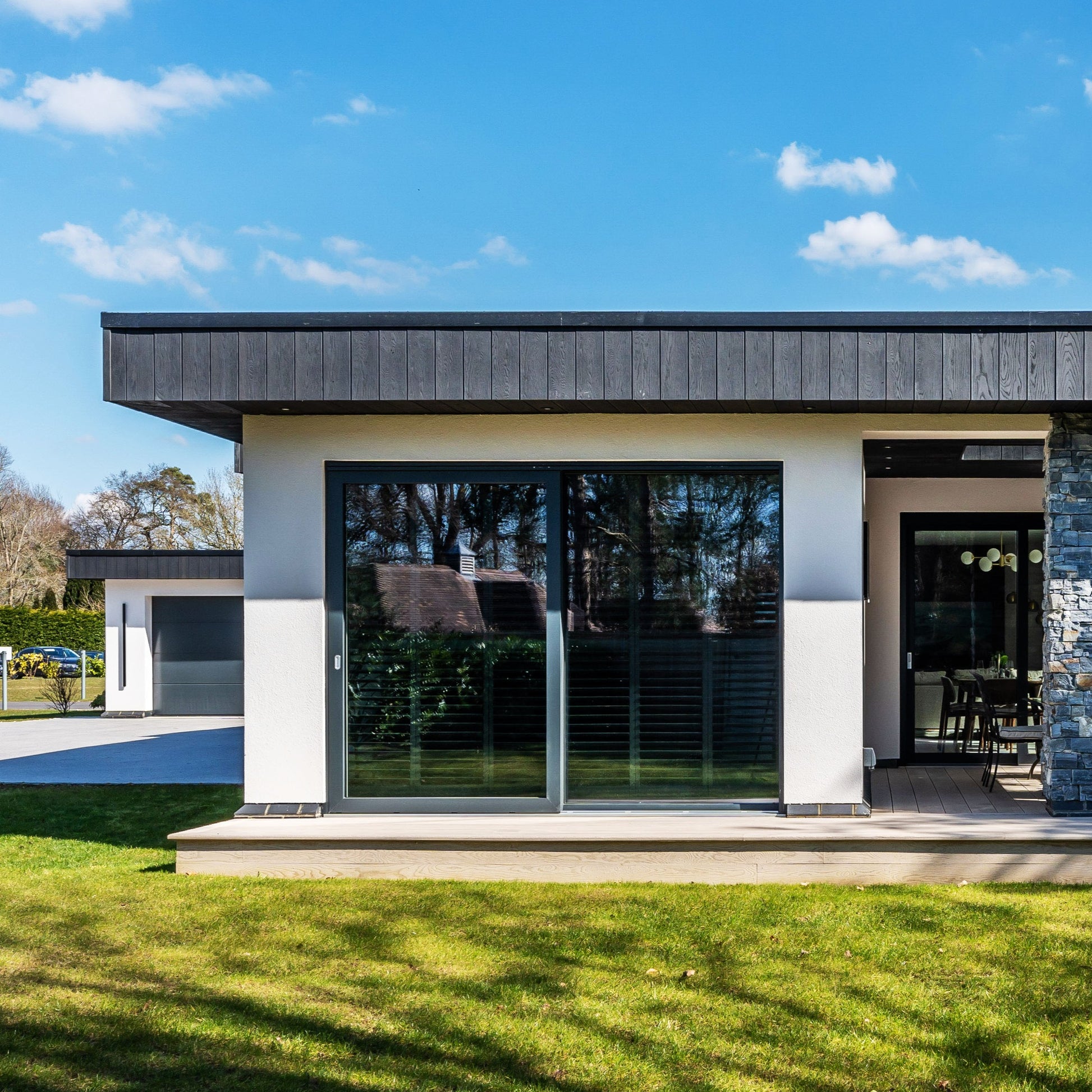

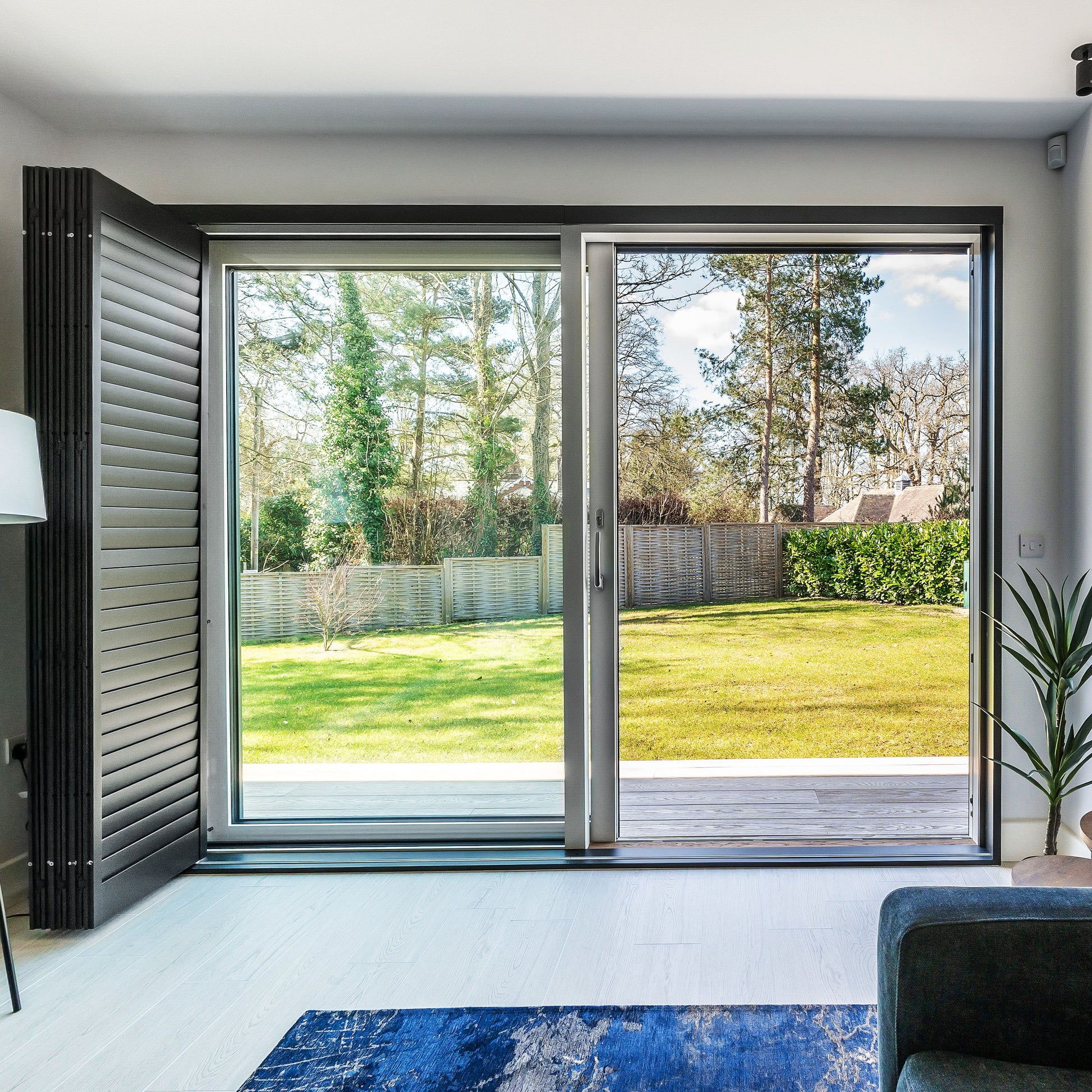

See the S319A in action
