S303T - 300 Series

Outward Opening Timber

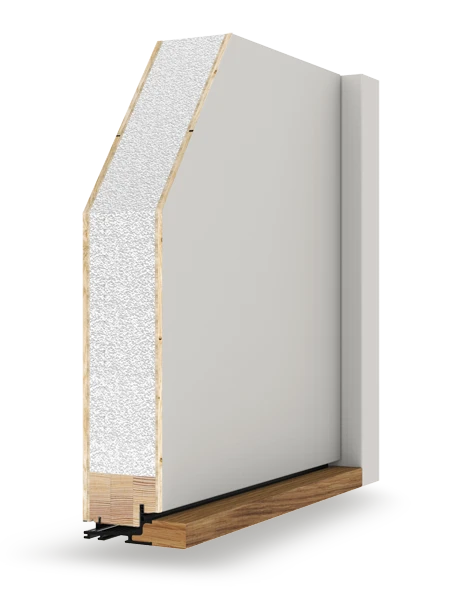

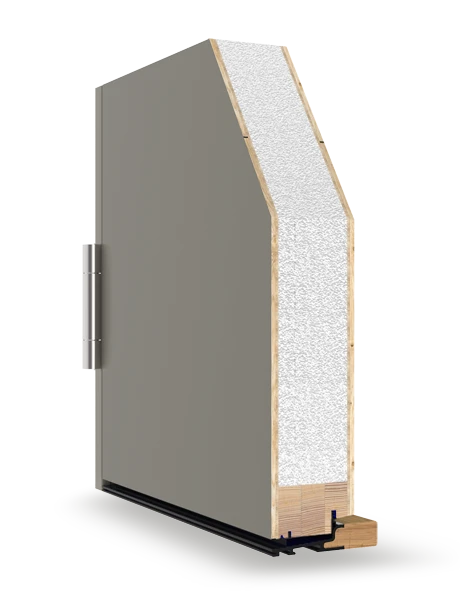

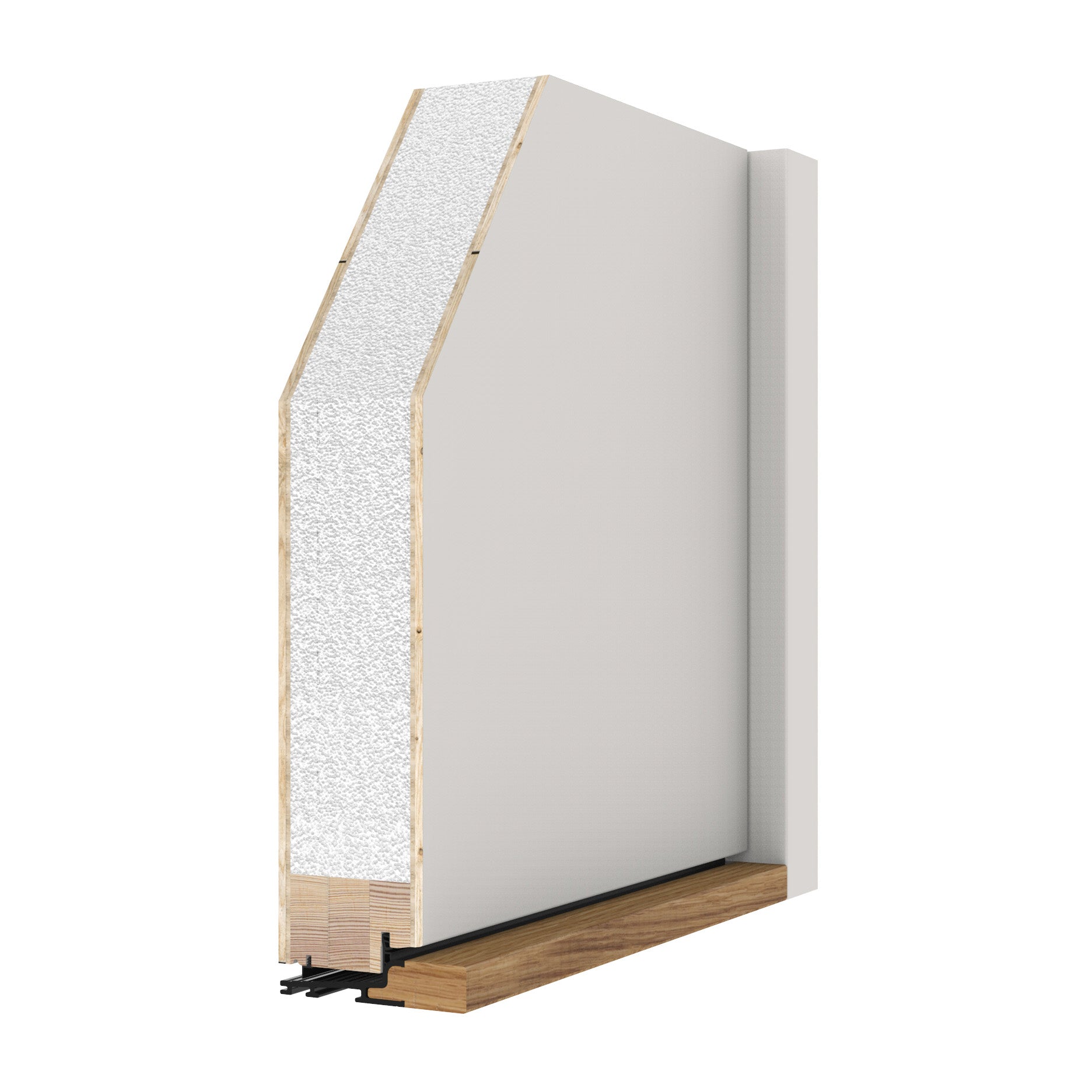

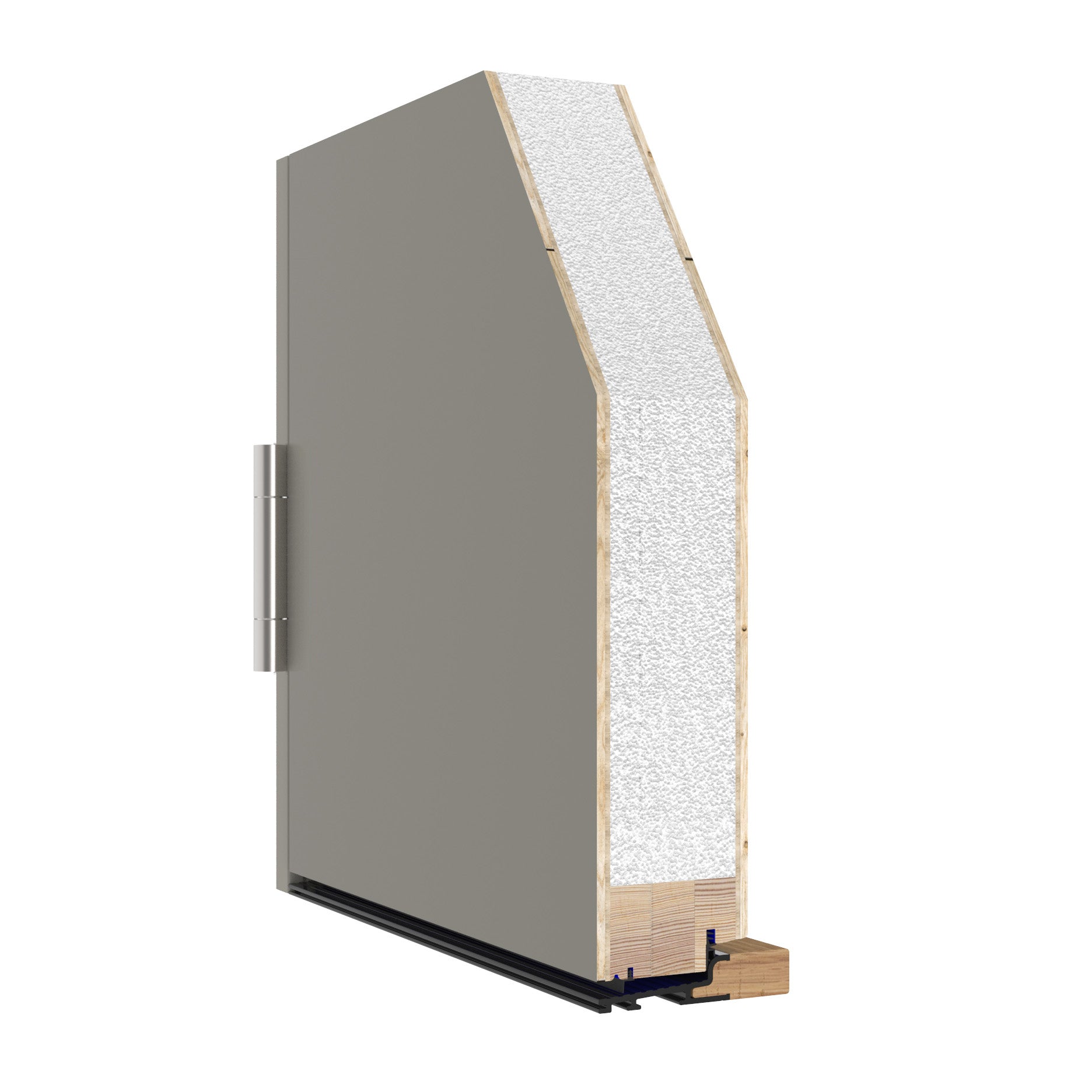

Timber door with insulating panel
next previous

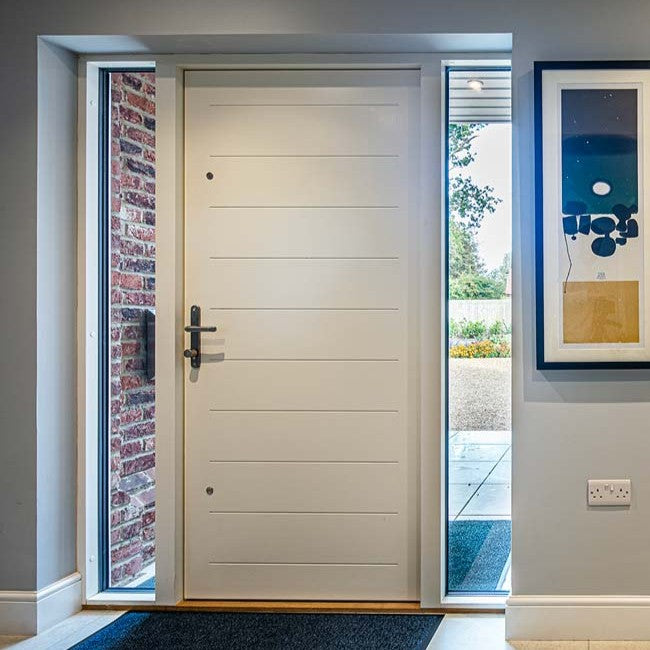

An outward opening timber entrance door with insulation panel for increased thermal efficiency.

The S303T door is available in a variable range of frame depths from 92mm to 120mm, and can be specified to suit your project requirements.

Typical U-values are approximately 0.74 W/m²K.


  Thermal Performance
U Value (typical) 0.74
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Outward Opening
Frame depth 92/120 mm
Whole window U-value 0.74 W/m²K
Glass U-value 0.53 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class 7A (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S303T.pdf
Drawing S303T.dwg
  Thermal Performance
U Value (typical) 0.74
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
