S315A - 300 Series

Lift & Slide Alu-Clad

Triple glazed sliding patio door with aluminium cladding
next previous

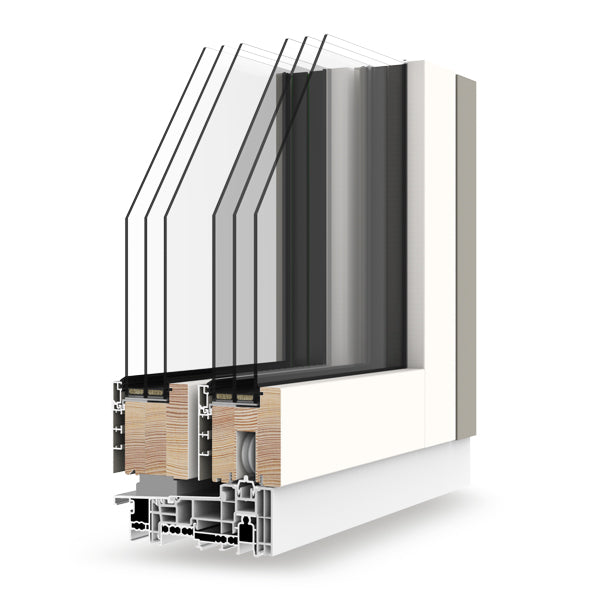

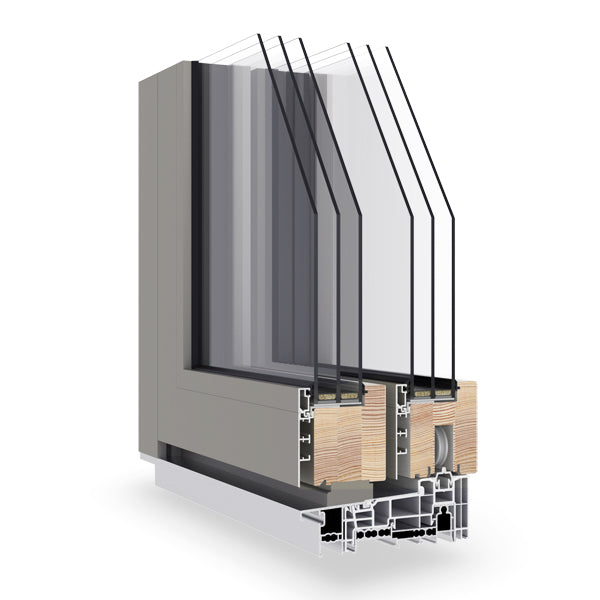

A 202mm deep triple-glazed sliding patio door with external Aluminium cladding.

Our most popular sliding door, the S315 lift and slide door can be specified to include up to four panels, with two opening panels. A wide variety of designs are possible to suit your project. Download available designs as a PDF here. Depending on the configuration, this door can be specified up to maximum dimensions of approximately 8500mm in width and 2800mm in height.

Whole door U-values are approximately 0.87W/m²K. This door is suitable for use in Passive Houses.


  Thermal Performance
U Value (typical) 0.87
  Sound Performance
Decibels (typical) 34db
  Security Performance
PAS 24

Opening types Lift and Slide
Frame depth 202 mm
Whole window U-value 0.87 W/m²K
Glass U-value 0.53 W/m²K
Glass package 52 mm triple glazed, two panes Low-E, argon filled
Sound insulation 34 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E750 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S315A.pdf
Drawing S315A.dwg
  Thermal Performance
U Value (typical) 0.87
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 34db
  Security Performance
PAS 24
