S319A - 300 Series

Sliding Alu-Clad

Triple glazed timber sliding door with aluminium cladding

Description
Technical

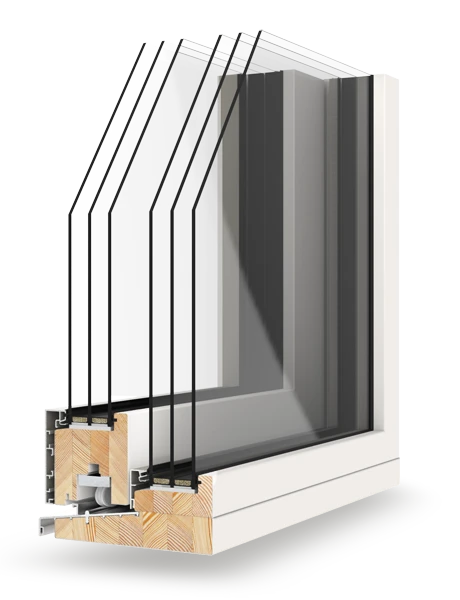

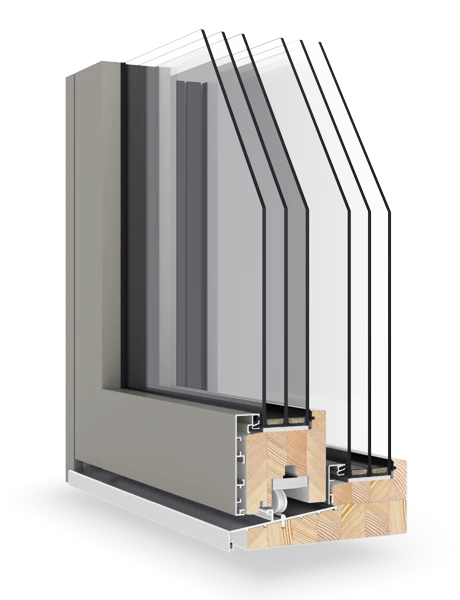

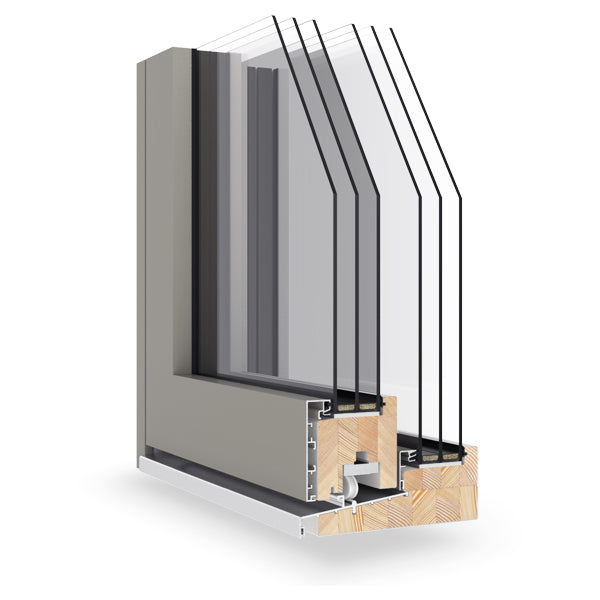

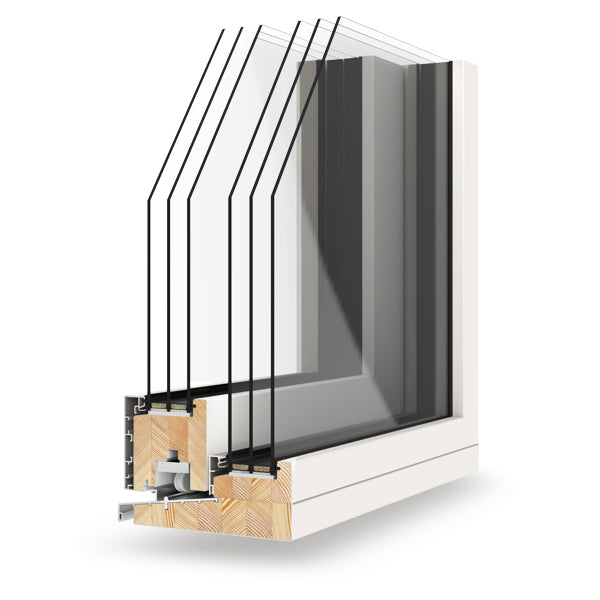

A 184mm or 196mm deep triple-glazed inline sliding patio door with optional aluminium cladding externally.

Our Innova S319 inline sliding door is designed as a two or four-panel door with a larger fixed panel relative to the sliding leaf. Depending on the design, this door can be produced at a maximum width of approximately 4000mm for a two-pane and 5900mm for a four-pane door.

The external sliding panel is pulled in towards the frame when the door is closed and locked, making the door very weather-resistant.

Typical thermal performance is approximately 0.72 W/m²K (whole door value). This door is suitable for use in Passive Houses.

See the S319A in action

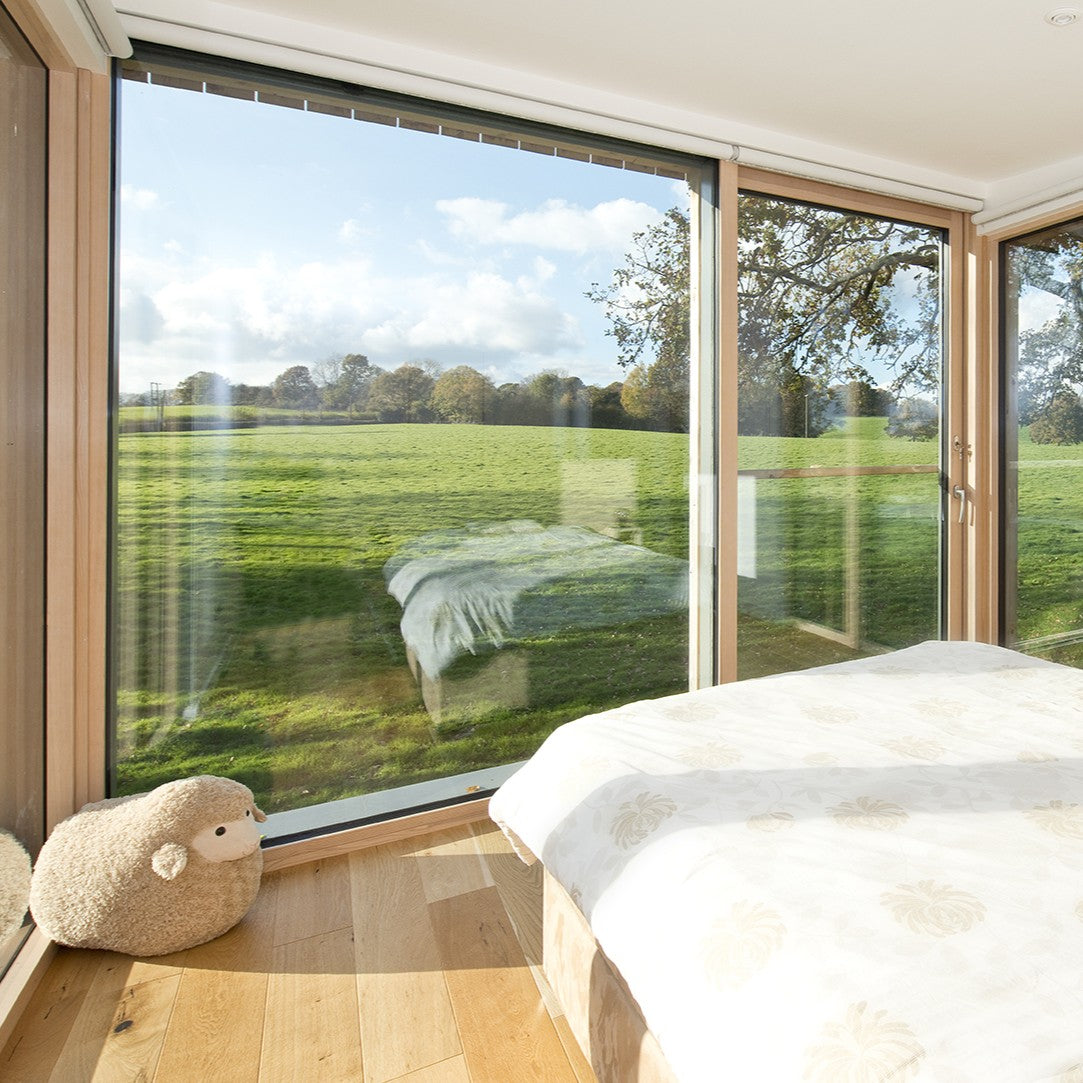

In this contemporary countryside self-build project.
In this funky Dorset new build.

Thermal Performance
U Value (typical) 0.72

Sound Performance
Decibels (typical) 33db

Security Performance
PAS 24

Opening types	Outward Opening Sliding
Frame depth	196 mm
Whole window U-value	0.72 W/m²K
Glass U-value	0.52 W/m²K
Glass package	52 mm triple glazed, two panes Low-E, argon filled
Sound insulation	33 db
Air permeability	Class 4 (EN 12207:2000)
Watertightness	Class E1350 (EN 12208:2001)
Wind load	NPD
Timber Colours	RAL
Aluminium Colours	RAL, IGP textured
Data sheet	S319A.pdf
Drawing	S319A.dwg
